New Acoustic Imaging Camera Helps Professional Inspectors Locate Smaller Compressed Air Leaks Faster and More Accurately

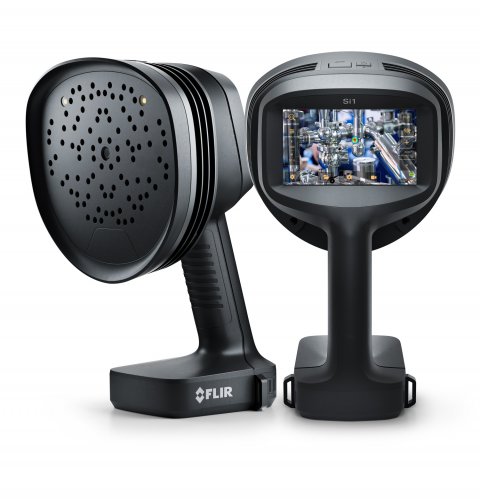

FLIR, a Teledyne Technologies company, today introduced the Si1-LD, an industrial acoustic imaging camera that brings faster and more accurate compressed air leak detection to those operating on a modest condition monitoring budget. The new FLIR Si1-LD offers improved detection and quantification capabilities in comparison with the existing FLIR Si124-LD Plus, along with a higher upper limit frequency range.

Compressed air systems typically lose 25–30% of their air to leaks, resulting in proportionally higher energy bills, costly unplanned production stoppages, shorter compressor operating life, the need to purchase extra compressor capacity, and increased maintenance expenses for the additional equipment.

Leveraging the advantages of ultrasonic technology, the new FLIR Si1-LD pinpoints leaks with enhanced imaging sensitivity at an affordable price. It offers a number of stand-out capabilities and features:
• An array of 96 microphones (2–100 kHz) facilitates the automatic detection, location, and measurement of compressed air and vacuum leaks from a safe distance of up to 130 m. Support comes from a 12 MP color camera with 8× digital zoom and LED lamp, facilitating the easy capture of visual details.
• Bandpass filtering allows inspectors to effectively tune out any confusing and/or incorrect sources of ultrasound without manual tuning. Ideal for challenging leak detection applications where user input is advantageous, the inspector simply uses the bandpass filter to undertake manual tuning of the required frequency range and clearly displays the source of interest on very rare occasions when needed.
• Single-handed operation of the lightweight, compact FLIR Si1-LD ultrasonic imager and industry-leading AI makes for an easy-to-use device with minimal training perfect for fast-paced inspections across large facilities.
• The touch-screen interface displays high-resolution images for easy issue identification with real-time, on-device quantification in terms of leak volume flow rate and leak cost per year. Users can leverage this data to prioritize repairs. The data is also suitable for inclusion in sustainability reports as an indication of energy reduction initiatives.
• Wireless data transfer ensures seamless reporting/analytics options, using either the online FLIR Acoustic Viewer or offline FLIR Thermal Studio effortless data backup and organizational team sharing, while also providing the backbone for Over The Air (OTA) firmware updates. The software gives users the ability to create reports through pre-built or fully customizable templates.
